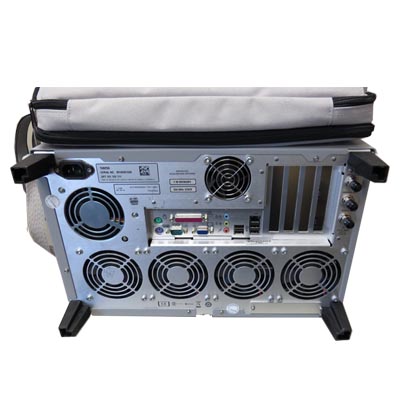

Logic Analyzer (16823A) - Agilent

Logic Analyzer Configuration
15inch (38.1 cm) color display with touch screen available
102channel portable logic analyzer with up to 32 M acquisition memory depth
(Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments
48channel pattern generator with up to 300 MVector/s speed and 16 M vector depth

(Timing Analysis (Asynchronous Sampling
4GHz (250 ps) timing zoom with 64 K memory
1.0GHz / 500 MHz (half / full-channel) conventional timing with deep memory
500MHz transitional timing

(State Analysis (Synchronous Sampling
 State clock rates up to 450 MHz
Data rates: up to 500 Mb/s
 Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly

Configuration Considerations
 Selectable memory depths1 M, 4 M, 16 M, 32 M
 Compatible with 40-pin logic analyzer probes. Probes are ordered separately
 Pattern Generator clock and data pods are ordered separately
